Question

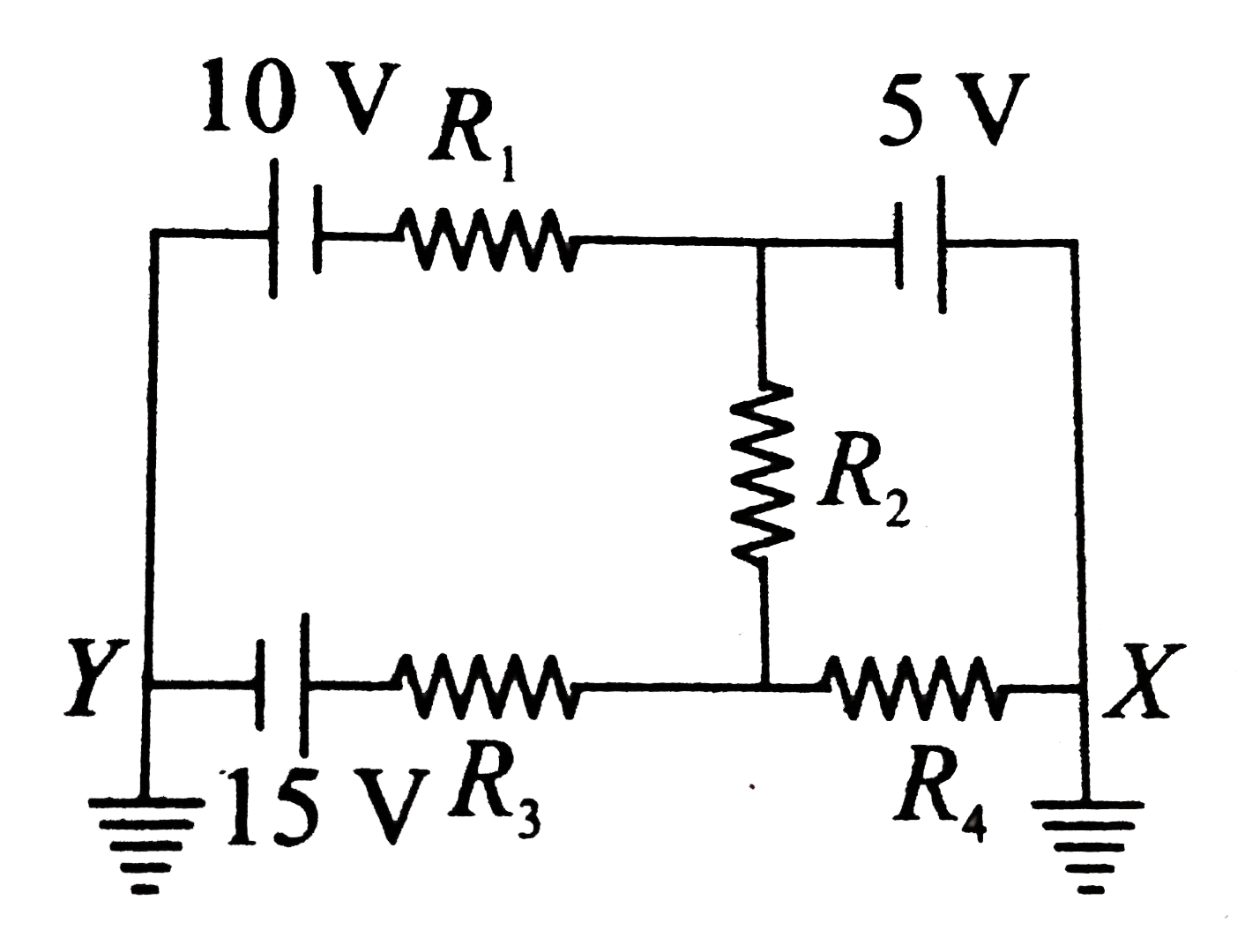

Consider the circuit shown in fig.

Assuming `R_1 =2Omega = R_4, R_3 = 4Omega,` current passing through the circuit if resistance `R_2` is removed is (remove ground connection at point X)
A. 2A
B. 3A
C. 1A
D. 2.5A

Answer 1

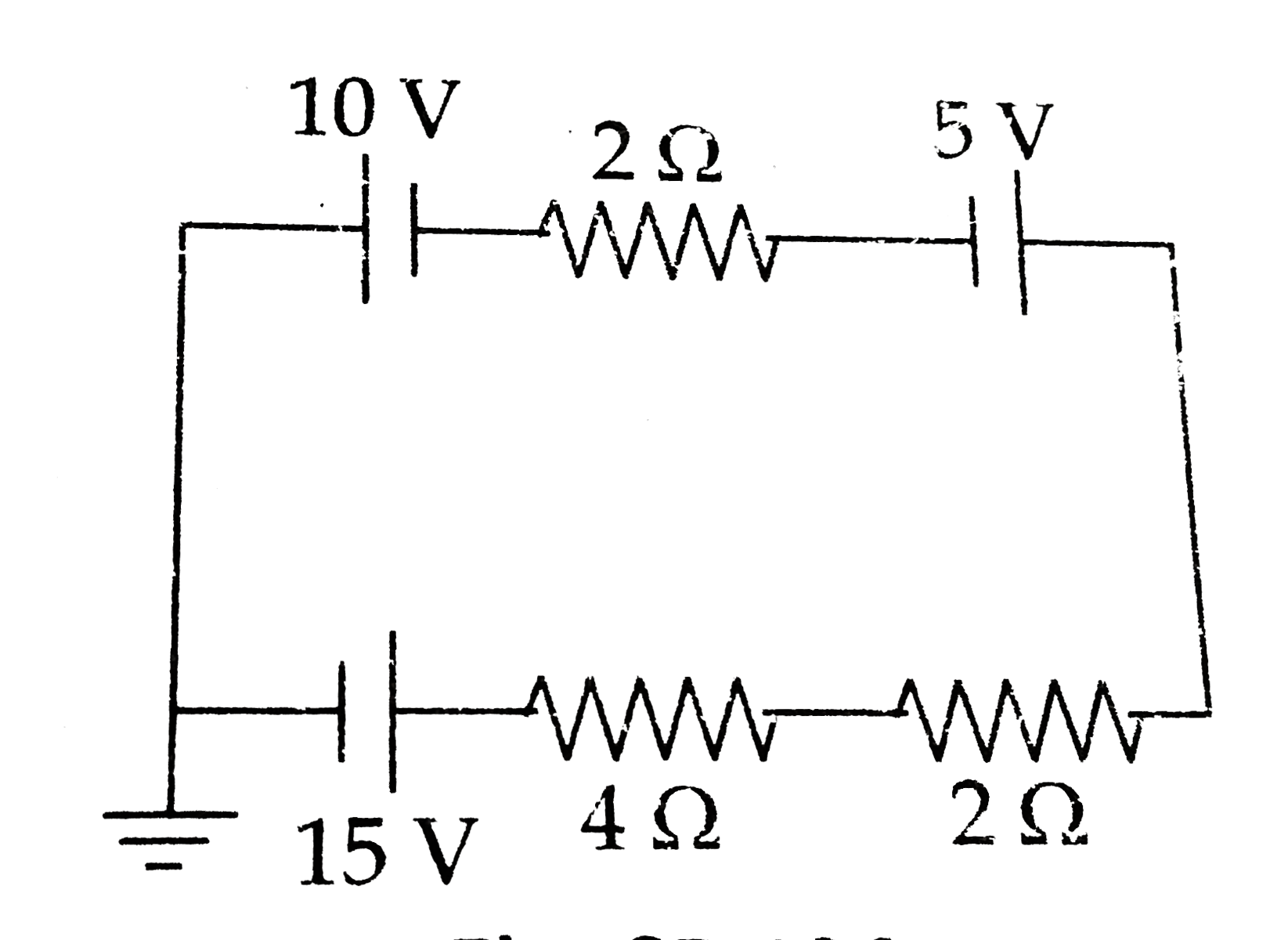

Correct Answer - D
`15 - IR_3 -IR_4 = 0`
Given `R_3 = 4Omega and R_4 =2Omega`
`I = 2.5 A` through `R_3 and R_4`
`-10-IR_1 +5 = 0`
or `I = (5)/(R_1) =2.5A`
`15 - 6I - 5 -2I +10 = 0`
or `I = (20)/(8) =2.5A`
