Question

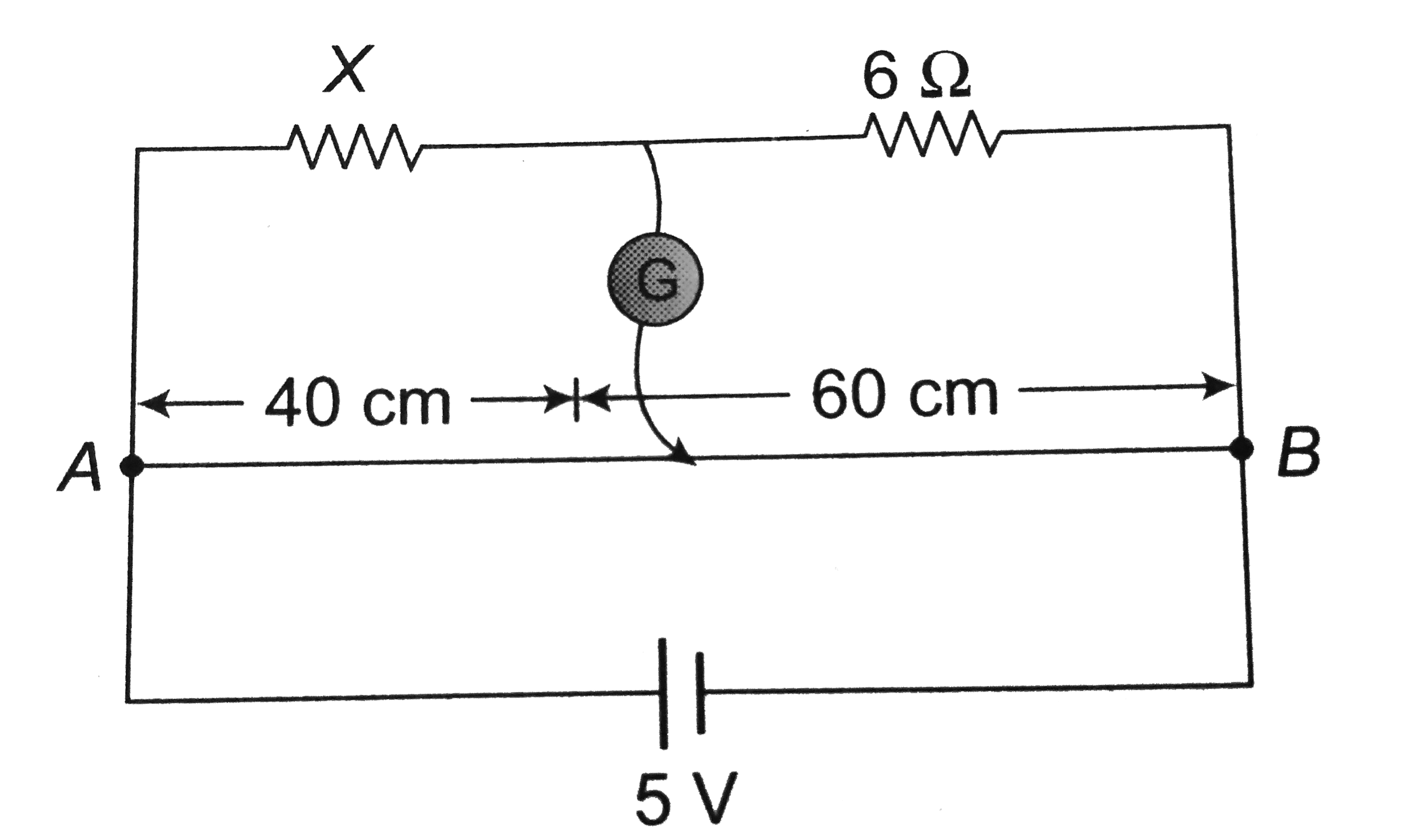

In the circuit shown, a meter bridge is in its balanced state. The meter bridge wire has a resistance `.1 ohm//cm`. The value of unknown resistance `X` and the current drawn from the battery of negligible resistance is

A. `6 Omega, 5 amp`
B. `10 Omega, 0.1 amp`
C. `4 Omega, 1.0 amp`
D. `12 Omega, 0.5 amp`

Answer 1

Correct Answer - C
(c ) Resistance of the part `AC`
`R_(AC) = 0.1 xx 40 = 4 Omega` and `R_(CB) = 0.1 xx 60 = 6 Omega`
In balanced condition `(X)/(6) = (4)/(6) implies X = 4 Omega`
Equivalent resistance `R_(eq) = 5 Omega` so current drawn from battery `i= (5)/(5) = 1 A`
